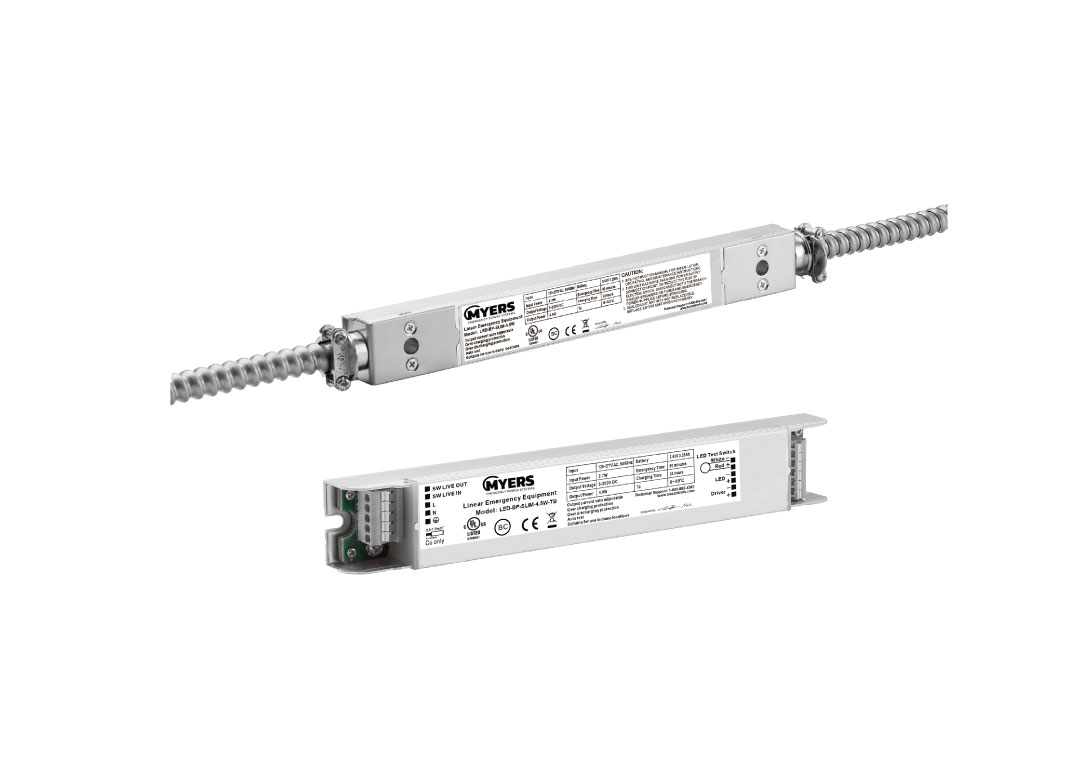

LED-BP-COLD Battery Packs

Slimmest & Lowest Profile in the Industry

MYERS EPS’ LED-BP-COLD Series battery packs allow users to convert normal LED luminaires into approved emergency lighting luminaires. With the slimmest and lowest profile in the industry, these units can be mounted inside or outside of the luminaire.

During emergency operation, LED-BP-COLD automatically transfers to battery power. The automatic voltage detection circuit matches the output voltage to your specific LED fixture, and runs it at constant power/light output for a minimum of 90 minutes. When AC power is restored, the emergency LED-BP-COLD Series switches the system back to normal mode of operation and resumes battery charging. The LED-BP-COLD battery packs are able to operate at low temperatures during normal and emergency situations. These cold-weather battery packs have been created with an internal heating element and temperature controlled circuitry that keeps the system from freezing.



Capacity and Dimensions

Flexible Conduit Version:

  • LED-BP-COLD-9W:  12.99″ L x 1.97″ W x 1.18″ D
  • LED-BP-COLD-18W: 15.55″ L x 1.97″ W x 1.18″ D
  • LED-BP-COLD-27W: 18.11″ L x 1.97″ W x 1.18″ D

Standard Features

  • UL924 Listed
  • IP66 rating, outdoor and damp rated
  • Able to withstand extremely low temperature (-40°C to 50°C / -40°F to 122°F
  • Converts LED luminaires into approved emergency lights
    for 90 minutes.
  • Constant power output with automatic overload and low
    battery protection
  • Automatic Voltage Detection: can be used with LED
    drivers/luminaires operating from 10V-400VDC,
    depending on model
  • 120-277Vac Universal Input
  • LED Test Switch Note: IP66 version test switch available
  • 120-277VAC Universal Input
  • LI-Ion batteries provide long life and are maintenance-free
  • 5-Year Warranty
  • Self-diagnostics
  • Available in 9W, 18W, 27W sizes (Approximately 900-2700 lumen output)
  •  Can be mounted inside or outside of the luminaire
  •  Unique feature: flexible conduit can be removed to
    expose wire leads if installation requirements change

Sizes

  • 9W, 18W, 27W
LED-BP-COLD Battery Packs

Downloads

Cut Sheet
