LED-BP-SLIM Battery Packs

Slimmest & Lowest Profile in the Industry

The LED-BP-SLIM Series battery packs allow users to convert normal LED luminaires into approved emergency lighting luminaires. Featuring a slim profile, the units can be mounted inside or outside of the luminaire.

During emergency operation, LED-BP-SLIM automatically transfers to battery power. The automatic voltage detection circuit matches the output voltage to your specific LED fixture, and runs it at constant power/light output for a minimum of 90 minutes. When the AC power is restored, the emergency LED-BP-SLIM Series switches the system back to normal mode of operation and resumes battery charging.

Capacity and Dimensions

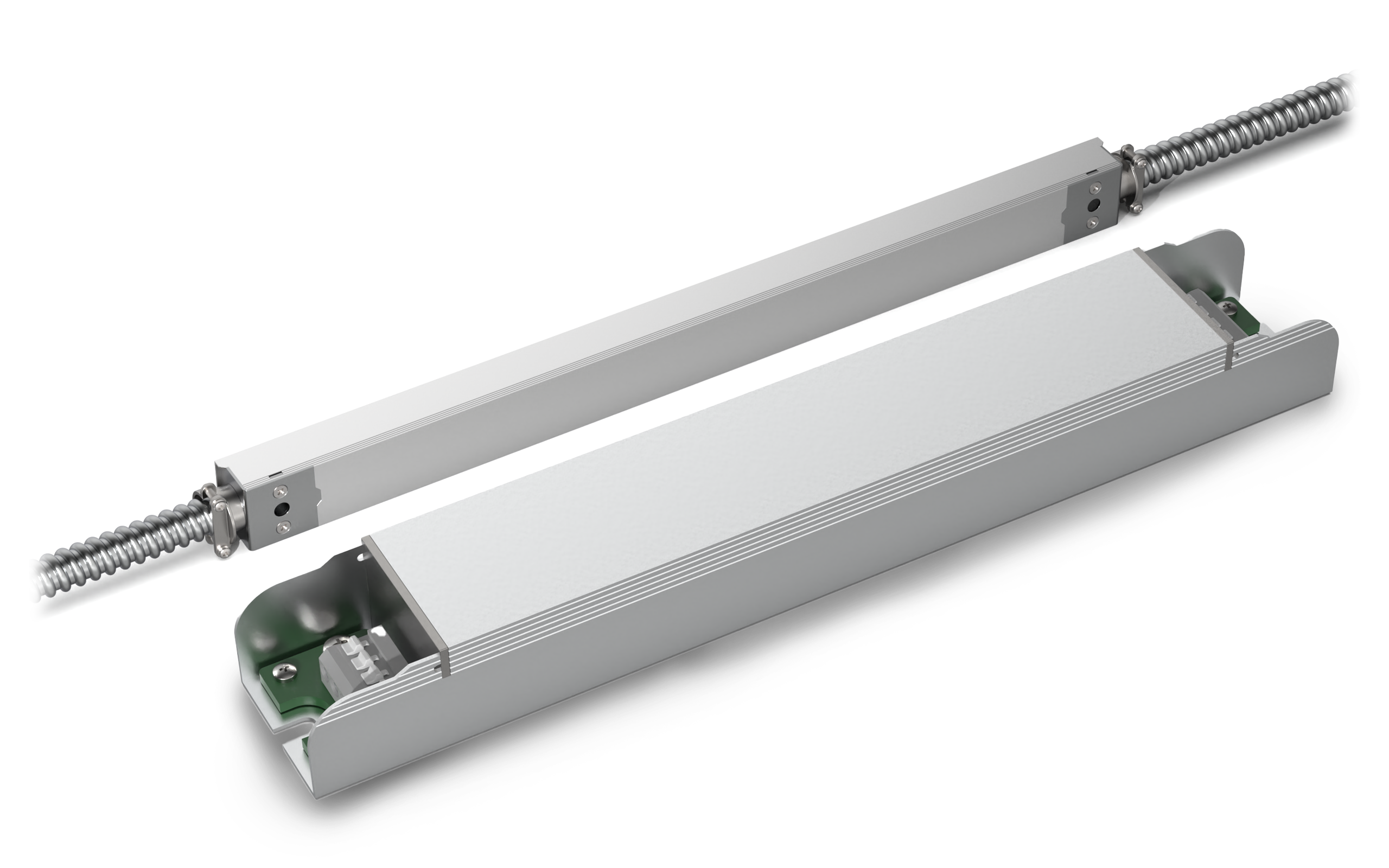

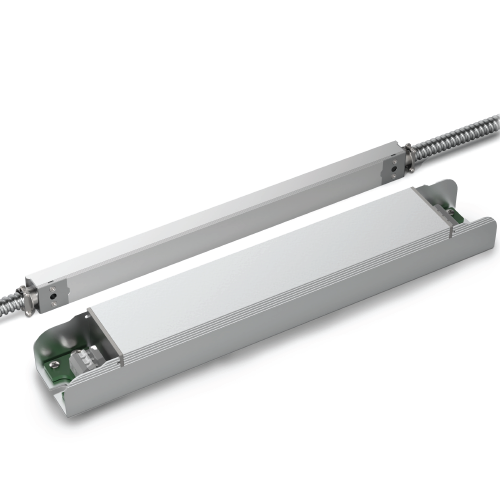

Flexible Conduit Version:

  • LED-BP-SLIM-4.5W:  10.16″ L x 1.18″ W x 0.87″ D
  • LED-BP-SLIM-9W:  12.52″ L x 1.18″ W x 0.87″ D
  • LED-BP-SLIM-13.5W:  15.87″ L x 1.18″ W x 0.87″ D
  • LED-BP-SLIM-18W:  18.43″ L x 1.18″ W x 0.87″ D

Push-In Terminal Block Version:

  • LED-BP-SLIM-4.5W-TB:  7.87″ L x 1.18″ W x 0.87″ D
  • LED-BP-SLIM-9W-TB:  10.24″ L x 1.18″ W x 0.87″ D
  • LED-BP-SLIM-13.5W-TB: 13.58″ L x 1.18″ W x 0.87″ D
  • LED-BP-SLIM-18W-TB:  16.14″ L x 1.18″ W x 0.87″ D

Standard Features

  • UL924 Listed
  • Converts LED luminaires into approved emergency lights for 90 minutes
  • Constant power output with automatic overload and low battery protection
  • Automatic Voltage Detection: can be used with LED drivers/luminaires operating from 5-300VDC
  • 120-277VAC Universal Input
  • LED Test Switch
  • Li-Ion batteries provide long life and are maintenance- free
  • 5-Year Warranty
  • Self-diagnostics
  • Suitable for use in dry or damp locations.
  • Approximately 450-1800 lumen output (depending on model selected)
  • Can be mounted inside or outside of the luminaire
  • Unique feature: conduit version may be converted to TB version if installation requirements change

Sizes

  • 4.5W, 9W, 13.5W, 18W
