Single-Phase Inverter

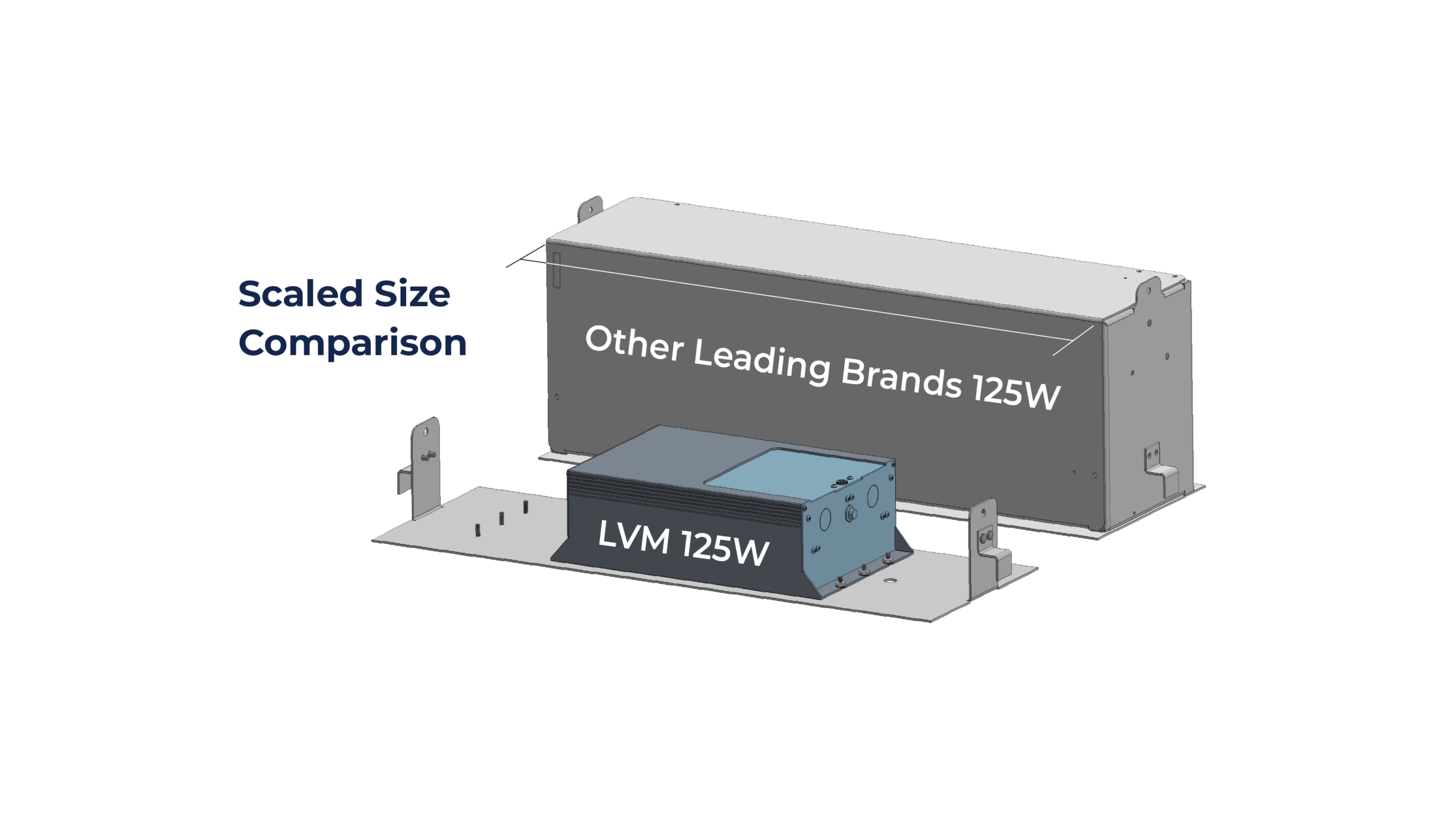

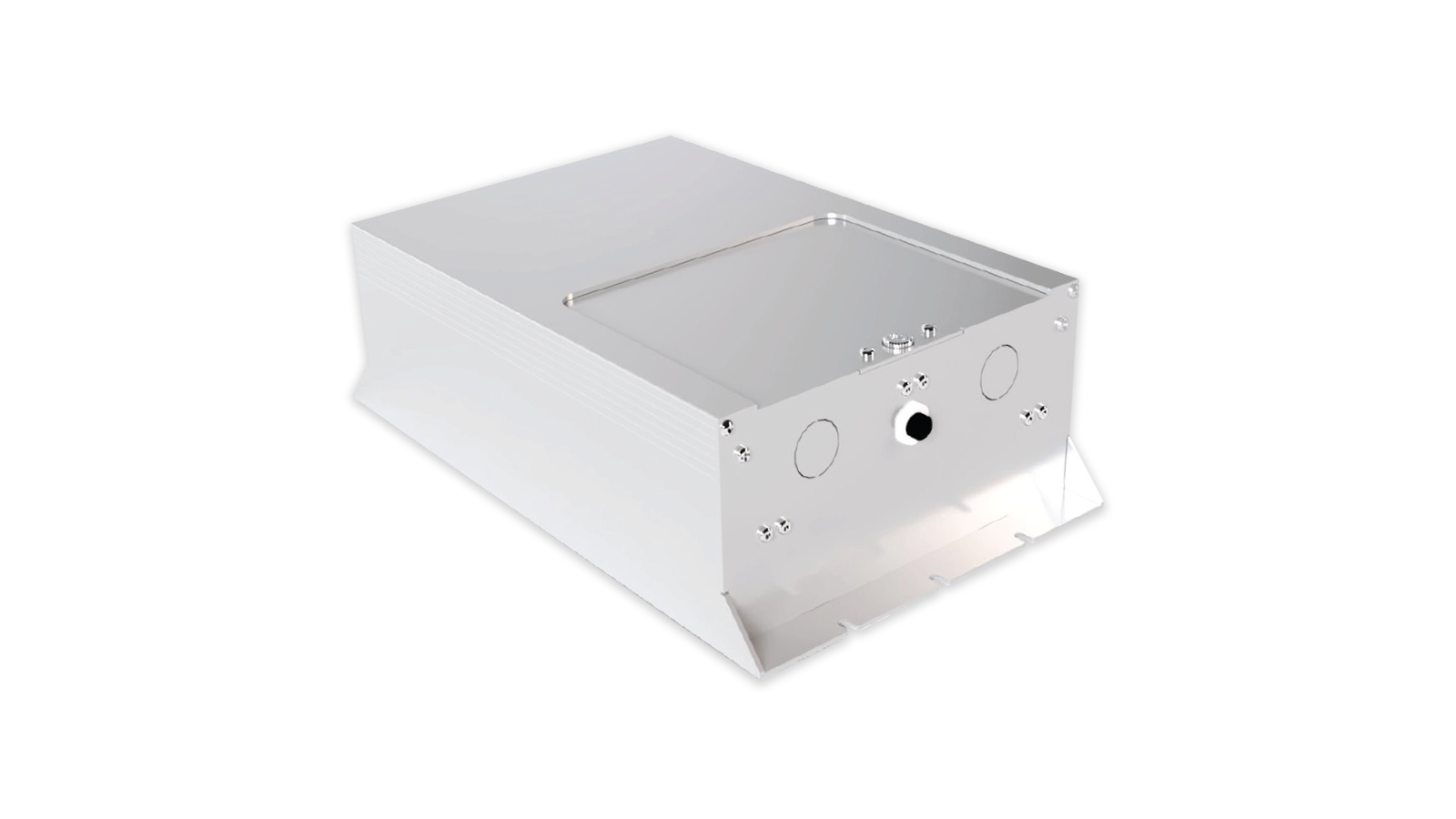

An ultra-efficient micro inverter that empowers architects and engineers to meet emergency lighting requirements while using existing lighting for interior and exterior egress. The next-generation LVM Series offers power increases of more than 10% while decreasing its size by more the 65% in volume and 40% in weight. Automatic 0-10V Dimming comes standard and allows larger outputs to be supported safely.
Power Capacity: 125VA | 250VA
Mounting: Wall-Mount | Plenum Rated Grid-Mount
Compatibility: All Lighting Loads
Standard Features: Automatic Voltage Detection | Automatic Bypass | Automatic 0-10V Dimming
Standard Diagnostics: Automatic Monthly Testing
Battery Specs: LiFePO4 battery chemistry for safer, lighter and longer lasting batteries | Operating Temp 32°-122°F (0°-50°C)
Input Voltage: 120V, 60Hz | 230V, 50Hz | 277V, 60Hz
Output Voltage: 120V, 60Hz | 230V, 50Hz | 277V, 60Hz
Warranty: Electronics: 3-Year Standard | Battery: 10-Year Prorated, 2-Year Full
