Single-Phase Inverter

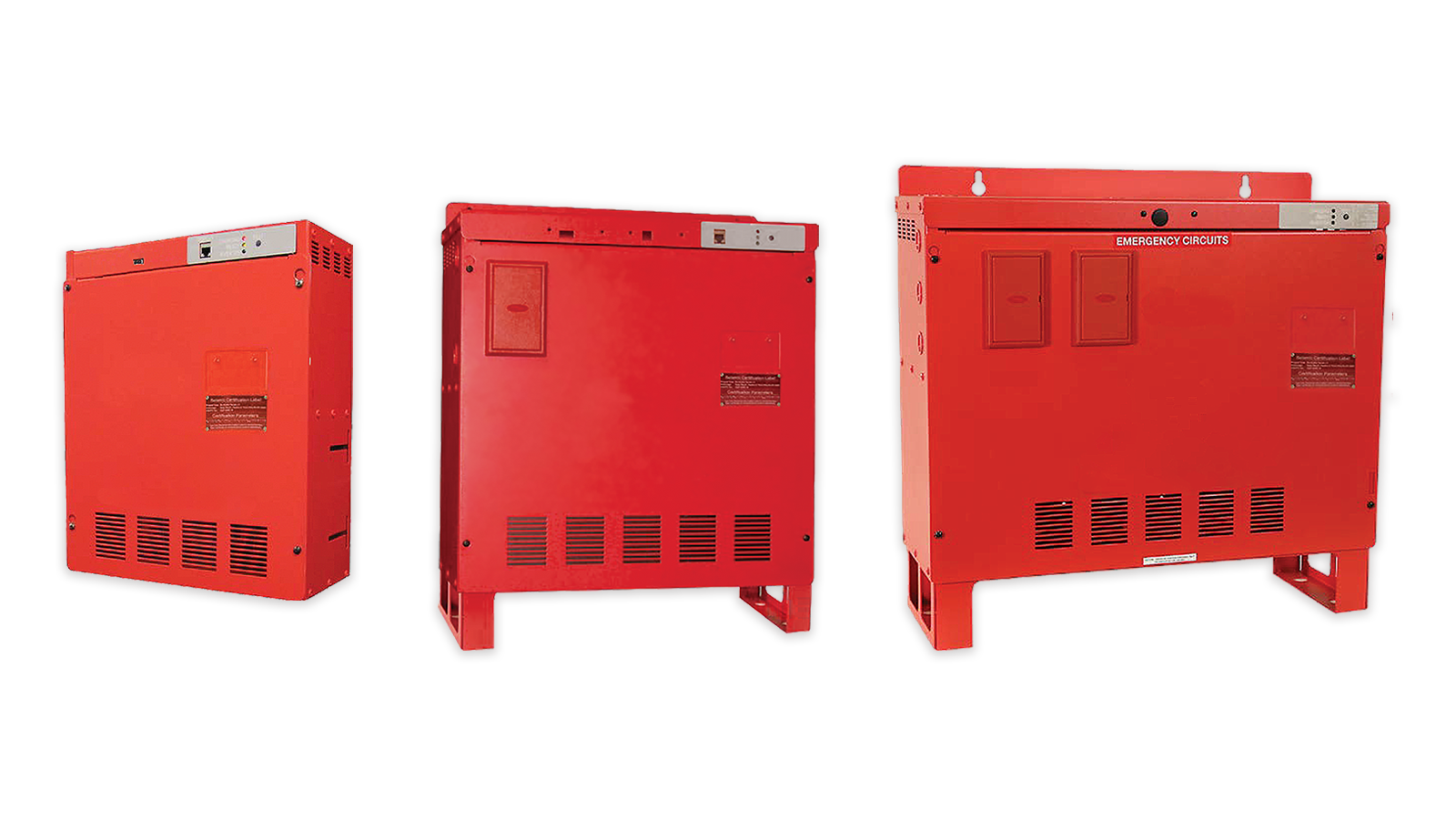

The LV-H Series single-phase mini inverter family provides reliable, code-compliant backup power for all types of emergency lighting loads, and features OSHPD Special Seismic Certification preapproval for use in California healthcare facilities. Available from 175 to 1100 kVA, it combines high efficiency, rapid transfer, flexible mounting and communication options, and robust diagnostics for automated testing and monitoring. OSHPD SSC Preapproval Number: OSP-0496.

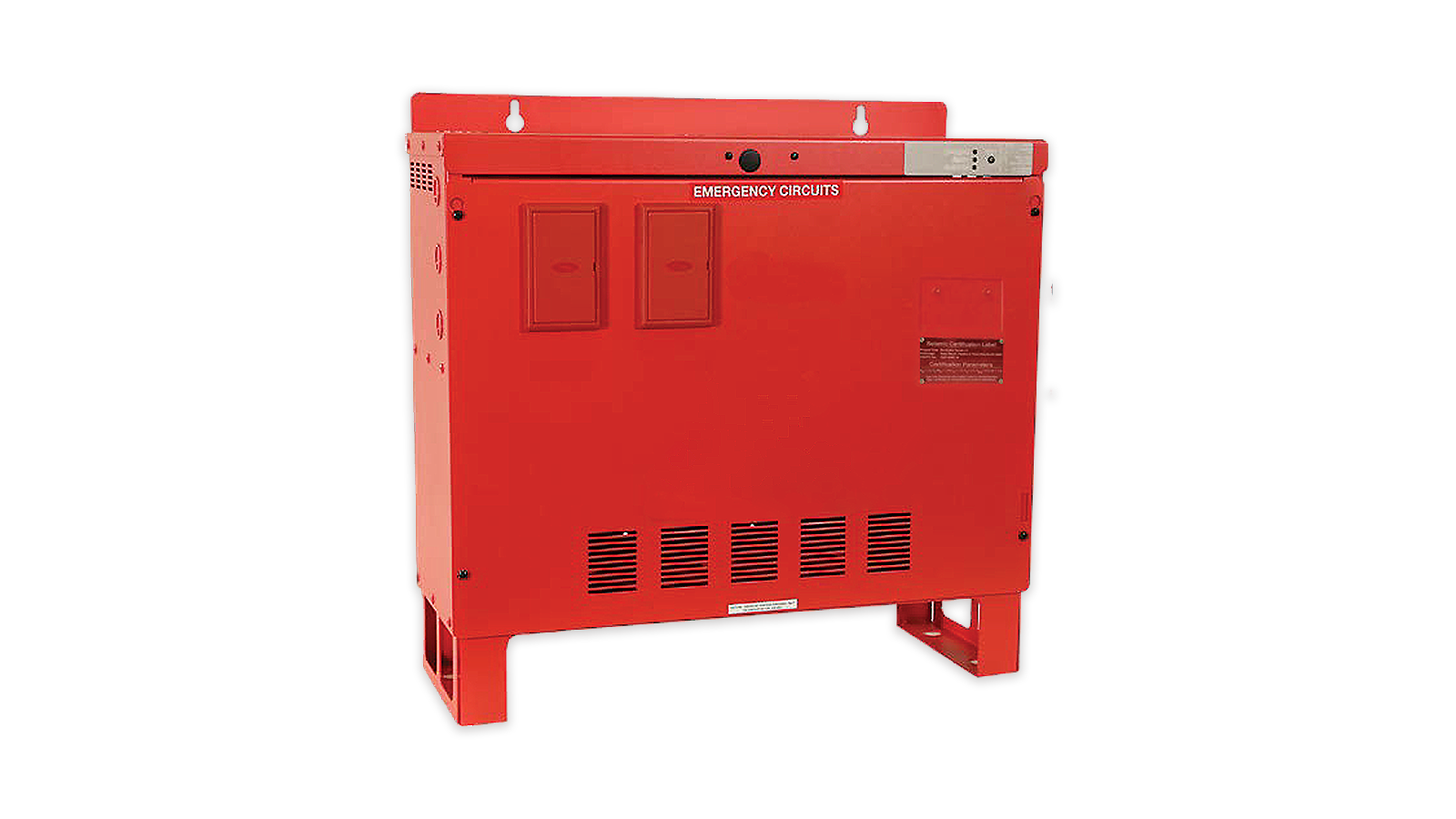

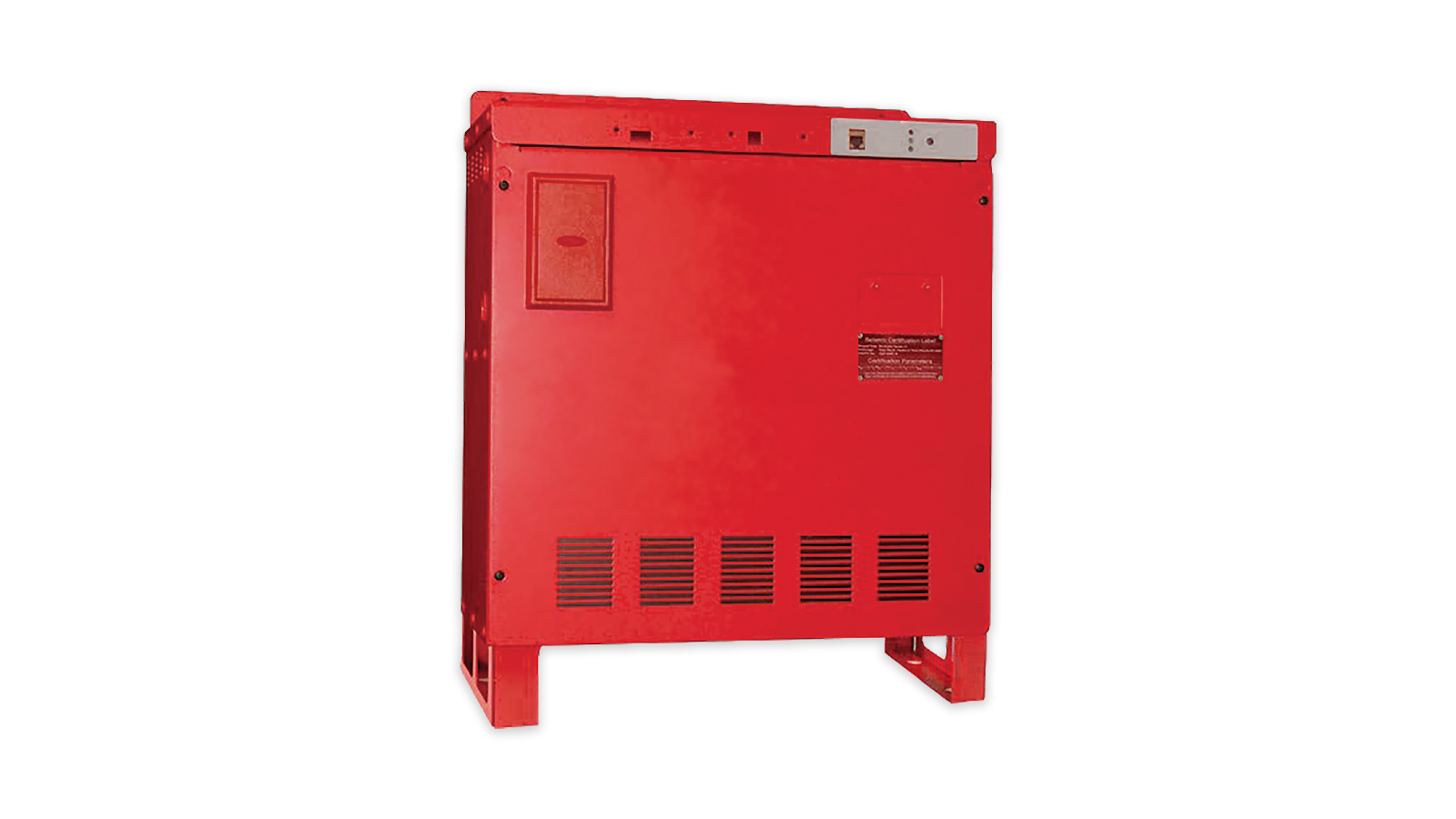

Power Capacity: 175VA | 350VA | 499VA | 550VA | 750VA | 1100VA

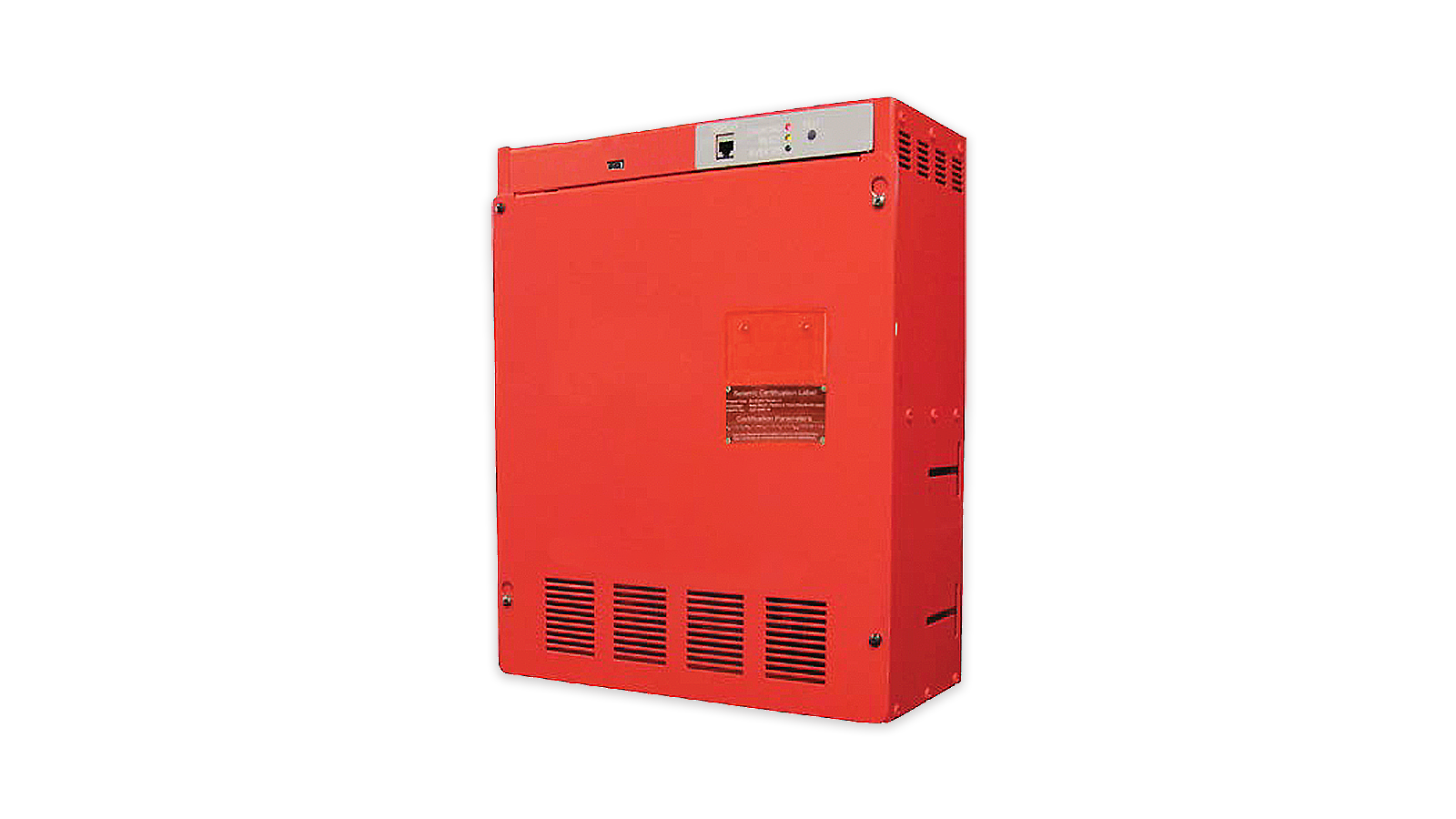

Mounting: Wall-Mount | Recessed Wall-Mount (175VA Only) | Floor-Mount (350-1100VA Only)
Runtime: 90 Minute Standard
Compatibility: Generator (10x Inverter Load) | All Lighting Loads
Standard Features: Input Fuse and Battery Fuse Protection | High Crest Factor and Inrush Capabilities | Pure Sine Wave | Non-Condensing < 95% Humidity | Input Circuit Breaker (10kAIC at 120VAC or 1.5kAIC at 240VAC) | Microprocessor-Controlled 3-Stage Battery Charger | NEMA Type 1 Cabinet | Battery Strapping
Optional Features: Output Circuit Breakers (350-1100VA Only)
Optional Communications: BACnet, BACnet IP, Modbus TCP/IP, Modbus RTU, IoT Inverter Connect
Inverter Specs: Line Interactive PWM MOSFET-based Inverter | 6mS Transfer Time | Operating Temp 32°-104°F (0°-40°C)
Battery Specs: Maintenance-Free VRLA Batteries | Operating Temp 68°-86°F (20°-30°C) per UL 924 Specifications
Standard Diagnostics: System Status Indicators and Momentary Test Switch | Summary Fault Dry Form C Contacts
Optional Diagnostics: Automatic Event, Test, and Alarm Log | NFPA 101 Self Testing and Data Logging | Status Monitoring Contacts
Available Alarms: Monthly Test Fault | Yearly Test Fault | Charger Fault | Load Reduction Fault | Output Voltage Low | Output Voltage High | Overload Fault | Low Voltage Disconnect | Heatsink Over Temp | Input Fuse Failure
Input Voltage: Field Selectable at 120VAC or 277VAC | 1-Phase 2-Wire Plus Ground +10% to -15%
Output Voltage: Field Selectable at 120VAC or 277VAC | 1-Phase 2-Wire Plus Ground +10% to -15%
Output Load Power Factor: 0.5 Lag to 0.5 Lead
Output Voltage Distortion: < 10% for Resistive Loads
Optional Service & Support: Factory Startup & Training | Extended Maintenance Plan | Extended Warranty
