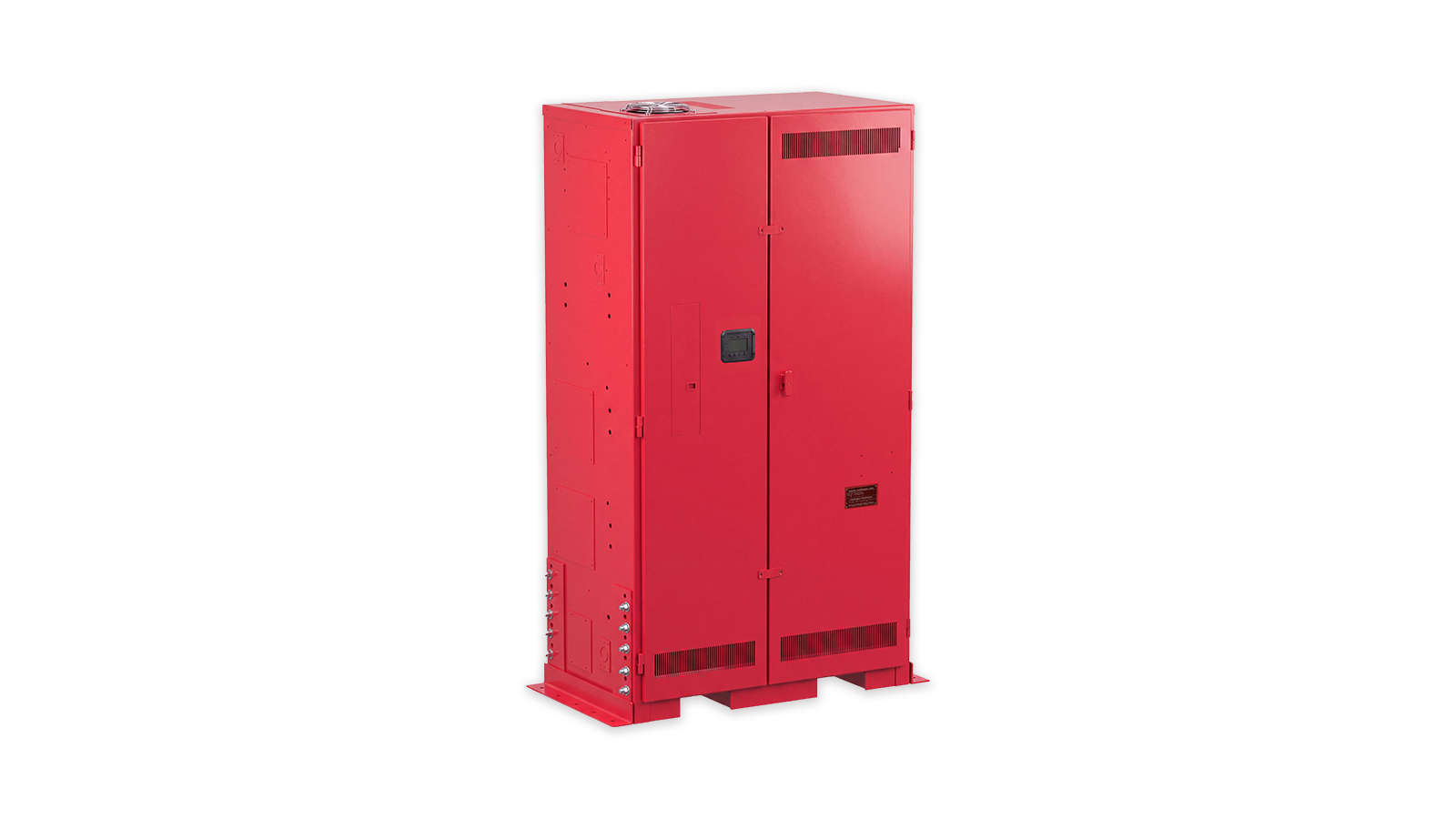

Single-Phase Seismic Inverter
Delivering 98% efficiency in an industry-leading compact footprint, the Supernova-H Series single-phase central inverter family provides reliable, code-compliant backup power and features OSHPD Special Seismic Certification preapproval for use in California healthcare facilities. Available from 1.75 to 16.7 kVA, it combines rapid transfer, flexible communication options and robust diagnostics for automated testing and monitoring. OSHPD SSC Preapproval Number has been submitted to HCAI, and while the number is still pending, a PE letter is available upon request.
Capacity Options: 1.75kVA | 2.5kVA | 3.75kVA | 5.0kVA | 6.25kVA | 7.5kVA | 10.0kVA | 12.5kVA | 16.7kVA
Efficiency: 98% Efficient Typical
Runtime: 90 Minute Standard | Configurable (Contact Factory)
Transfer Time: No Break 2ms Transfer Time
Standard Diagnostics: Automatic Event, Test, and Alarm Log | NFPA 101 Self Testing and Data Logging
Optional Diagnostics: Status Monitoring | Summary Form C Contacts | Summary Alarm | Output Trip Alarms
Communications: Standard: RS-232 Port | Optional: BACnet, BACnet IP, Modbus TCP/IP, Modbus RTU, IoT Inverter Connect
Standard Features: Withstand Seismic Rating Based on Shaker Table Testing | Input Circuit Breaker (65 KAIC Rating) | NEMA Type 1 Cabinet | Space-Saving Design | Forced Air Cooling Only During Emergency Operation (No Filters Required)
Optional Features: Internal or External Maintenance Bypass | Output Circuit Breakers | Fast Charge | Seismic Mounting
Input Voltage: 120 or 277VAC | 1-Phase 2-Wire Plus Ground | Custom Available (Contact Factory)
Output Voltage: 120 or 277VAC | 1-Phase 2-Wire Plus Ground | Custom Available (Contact Factory)
Output Load Power Factor: 0.5 Lag to 0.5 Lead
Output Voltage Distortion: Less Than 3% THD for Linear Loads
Compatibility: Generator | Lighting Loads | Motor Loads
Inverter Operating Temp: 32°F to 104°F (0°C to 40°C)
Battery Operating Temp: 68°F to 86°F (20°C to 30°C)
Optional Service & Support: Factory Startup & Training | Extended Maintenance Plan | Extended Warranty
Cabinet Size (HxWxD"): Small: 69x31.5x25 | Medium: 69.3x43.1x25 | Large: 78.3x48.5x25
