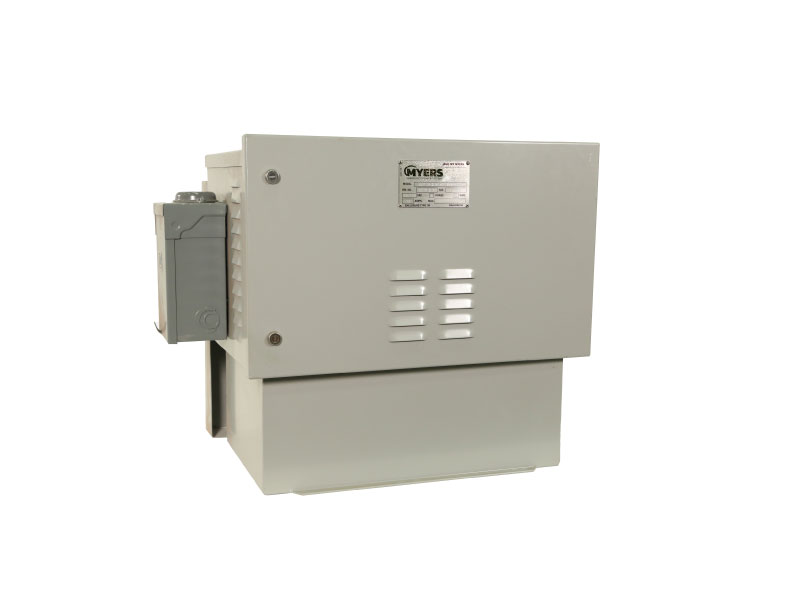

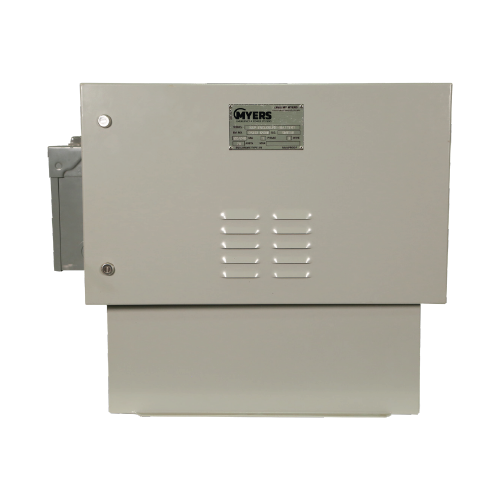

Ground Mount Enclosures

Myers EPS offers Ground Mount Enclosures for a variety of applications. These outdoor-rated enclosures accommodate one power supply / UPS and 1 — 8 Group 27 / 31 top terminal batteries. Standard models include ground skirt / pedestal, cable network power interface with bypass switch, enclosure status LED, and all cables to support / connect specified number of batteries.


  • Designed for Group 27 / 31 Top Terminal Batteries
  • Available in 0 — 8 Battery Versions (0 Battery Has No Battery Drawer)
  • Top Compartment / Shelf for UPS or Other Electronics
  • Battery Slide Tray with Locking Latches
  • 120 or 240 VAC Duplex Outlet (Varies by Model)
  • Built-in High Current Alt/Bypass Switch with Cable Network Power Interface
  • Includes All Power Battery Cables
  • Secure Rear Cable Raceway
  • LED Output Indicator
  • Universal Ground Mount NEMA 3R Enclosure Compatible with Any Power Supply Brand
  • Optional Meter Base with High Mag Breaker Box
  • Lightweight Corrosion-Resistant Aluminum Enclosure
  • UV-Protected Powder Coat Finish
  • Optional Automatic Integrated AC or DC Generator Interface
  • Optional Thermostat Controlled Exhaust Fan


Ground Mount Enclosures


Cut Sheet
