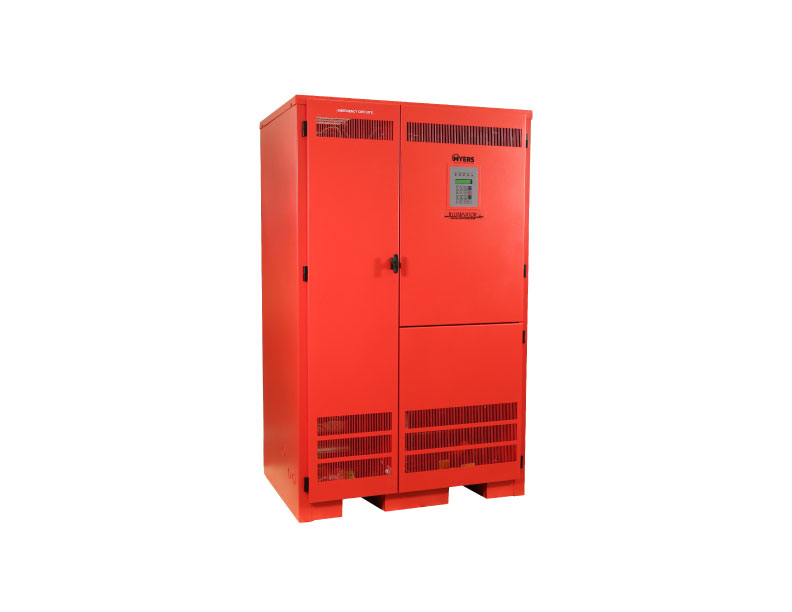

Illuminator CIII – 4.8kVA, 6kVA, 8kVA, 10kVA, 12.5kVA, 16.7kVA, 24kVA, 33kVA, 40kVA & 50kVA

Myers EPS offers a full line of three phase emergency lighting inverters that provide up to 50kVA/kW of backup power for larger facilities and campuses. The Illuminator CIII is also available as an OSHPD rated unit–contact the factory to learn more.

Capacity and Dimensions

• 4.8kVA/kW — 10kVA/kW: 47″ H x 60″ W x 25″ D
• 12.5kVA/kW — 16.7kVA/kW: 47″ H x 90″ W x 25″ D
• 24kVA/kW: 72″ H x 92″ W x 31″ D
• 33kVA/kW — 50kVA/kW: 72″ H x 140″ W x 31″ D

Standard Features

• 98% Efficient Typical
• PWM/IGBT Technology and Micro-Controller
• Internal Maintenance Bypass
• User Programmable with Password Protection
• Automatic Event, Test and Alarm Log
• RS232 Communications Port
• Input Circuit Breaker
• 2ms Transfer Time
• Low Audible Noise (45 dBA @1m)
• Space-Saving Design
• 65kAIC Withstanding Rating
• NEMA Type 1 Cabinet

Optional Features

• Enhanced Communications
  • Expanded Building Management Protocols
  • BACnet or Modbus Communications Interface
  • NEW IoT Connect Cloud Software
• External Maintenance Bypass
• Summary Alarm Dry Form C Contacts
• Internal Output Distribution Circuit Breakers
• Factory Startup and Training
• Normally Off Output
• Output Trip Alarms
• Remote Panels (Meter, Status or Summary Alarm)
• Extended Factory Warranty and Maintenance Contracts

Specifications

• Input Voltage: 120/208VAC or 277/480 VAC 3-Phase 4-Wire Plus Ground
• Output Voltage: 120/208VAC or 277/480 VAC 3-Phase 3 or 4-Wire Plus Ground
• Output Load Power Factor .5 Lag to .5 Lead
• Compatible with All Lighting and Motor Loads
• Forced Air Cooling Only During Emergency Operation; No Filters Required
• Output Distortion Less Than 3% THD for Linear Loads
• Compatible With Generators (10x Inverter Size)
• Custom Voltages Available
• 90 Minute Runtime Standard; 120 available
• Inverter Operating Temperature 32°F to 104°F (0°C to 40°C)
• Battery Operating Temperature 68°F to 86°F (20°C to 30°C) per UL 924 Specifications

Sizes

• 4.8kVA, 6kVA, 8kVA, 10kVA, 12.5kVA, 16.7kVA, 24kVA, 33kVA, 40kVA & 50kVA

• 1-D-1-S
• 1-D-2-S
• 1-D-3-S
• 1-D-4-S
• 1-D-5-S
• 1-D-6-S
• 1-D-7-S
• 1-D-8-S
• 1-D-9-S
• 1-D-10-S

• 2-D-1-S
• 2-D-2-S
• 2-D-3-S
• 2-D-4-S
• 2-D-5-S
• 2-D-6-S
• 2-D-7-S
• 2-D-8-S
• 2-D-9-S
• 2-D-10-S
