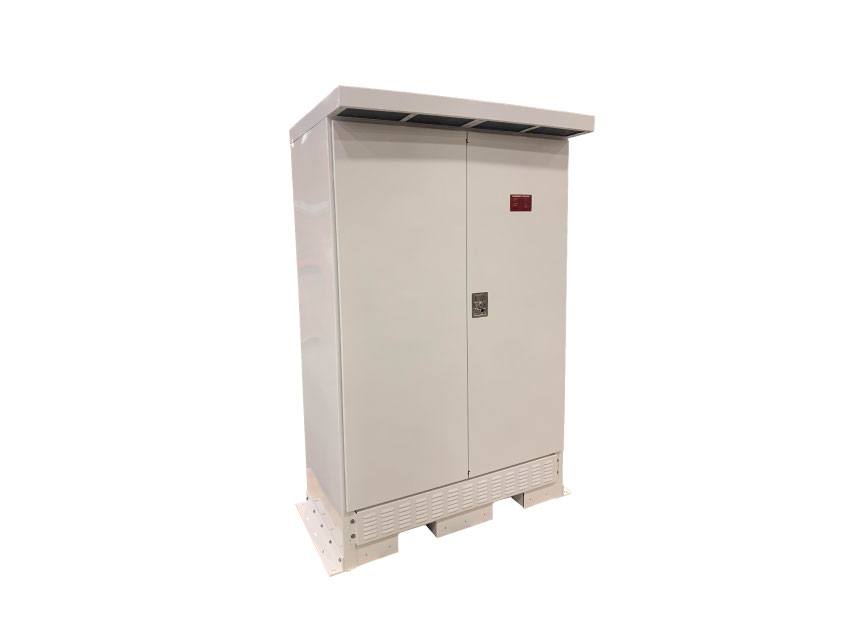

Illuminator CR – 3.0kVA, 4.0kVA, 5.0kVA, 6.5kVA & 8.0kVA

Myers EPS Illuminator Series CR is an emergency lighting inverter available in single phase for installation outdoors. The inverter transfers to emergency mode within two milliseconds when utility power is lost, which allows the system to support all types of lighting loads including HID. The outdoor-rated cabinet facilitates installation in remote locations and where space in not available indoors. Based upon more than 30 years of engineering and manufacturing expertise, the CR Series combines all of the features that deliver reliability, versatility and ease of operation & maintenance with the latest technology to create an industry-leading solution.

Capacities

3.0kVA, 4.0kVA, 5.0kVA, 6.5kVA & 8.0kVA

Dimensions

76″ H x 54″ W x 30″ D

Standard Features

UL 924 Listed for Operating Temperatures 10° to 40°C (50° to 104ºF )
NEMA 3R Enclosure with Extra Variable Speed Temperature Controlled Fans for Forced Air Cooling
White, Exterior Grade, Baked Powder Coat Painted Steel Enclosure
Conformal Coat all Printed Circuit Boards
Maintenance Bypass (Internal) – Make Before Break
Summary Dry Form C Contacts
Seismic Bracing
CORBIN – Corbin CAT60 Locks; 3-Point Lock

Optional Features

Enhanced Communications
- Expanded Building Management Protocols
- BACnet or Modbus Communications Interface
- NEW IoT Connect Cloud Software
Remote NEMA 1 Panels
Output Circuit Breakers
Extended Factory Warranty
Factory Startup and Training
Normally Off Output
Output Trip Alarms
Stainless Steel Cabinet
Microprocessor-Controlled Convection Heater
