Illuminator IE (LED) – 1.5kVA, 2.25kVA, 3.0kVA, 3.75kVA, 5.0kVA, 6.0kVA, 8.0kVA, 10.0kVA, 12.5kVA & 16.7kVA

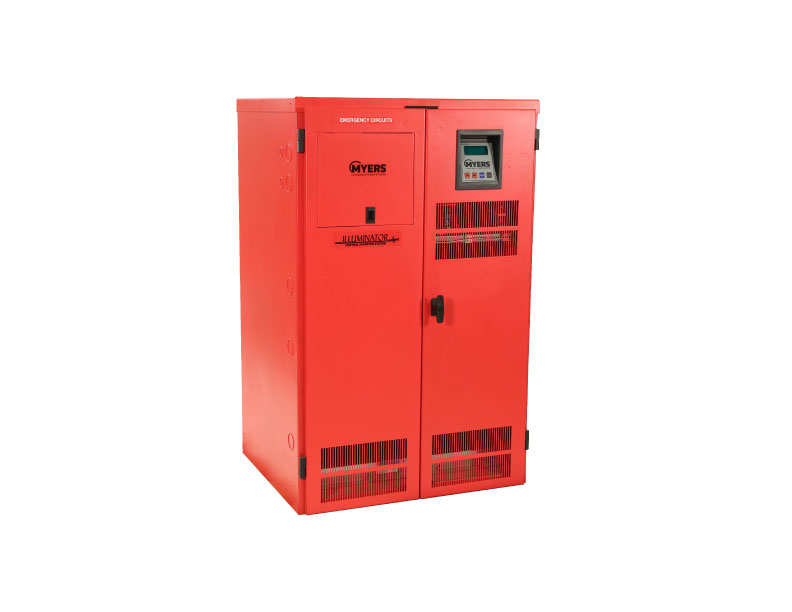

Myers EPS Illuminator IE is a central inverter system for emergency lighting designed for LED lighting loads. The system features a single-cabinet design for units up to 16.7kVA/kW, reducing footprint and installation costs. With a wealth of advanced communications features, the Illuminator IE offers unmatched convenience.

The Illuminator IE is also available as an OSHPD rated unit–contact the factory to learn more.

Capacity and Dimensions

• 1.5kVA/kW — 5.0kVA/kW: 47″ H x 30″ W x 25″ D
• 6.0VA/kW — 16.7kVA/kW: 76″ H x 48″ W x 25″ D

Standard Features

• 98% Efficient Typical
• Automatic Event, Test, and Alarm Log
• User Programmable With Password Protection
• Normally On and Normally Off Output
• Input Circuit Breaker
• RS232 Communications Port
• Space-Saving Design
• 50mS Transfer Time
• NFPA 101 Self Testing and Data Logging
• Code Compliant: 90 Min. Runtime
• 65 KAIC Input Rating
• NEMA Type 1 Cabinet

Optional Features

• Enhanced Communications
  • Expanded Building Management Protocols
  • BACnet or Modbus Communications Interface
  • NEW IoT Connect Cloud Software
• Internal or External Maintenance Bypass
• Summary Alarm
• Output Circuit Breakers
• Status Monitoring & Summary Form C Contacts
• Normally Off Output with Time Delay
• Output Trip Alarms
• Seismic
• Factory Startup & Training
• Extended Maintenance & Factory Warranty

Specifications

• Input Voltage: 120 or 277VAC | 1-Phase 2-Wire Plus Ground
• Output Voltage: 120 or 277VAC | 1-Phase 2-Wire Plus Ground
• Output Load Power Factor .5 Lag to .5 Lead
• Output Voltage Distortion Less Than 3% THD for Linear Loads
• Custom Voltage Available (Contact Factory)
• Forced Air Cooling Only During Emergency Operation; No Filters Required
• Compatible with all Non-HID lighting Including LED Drivers
• Generator/Motor Compatibility
• 90 Minute Runtime Standard; Extended Runtimes Available upon Request
• Inverter Operating Temperature 32°F to 104°F (0°C to 40°C)
• Battery Operating Temperature 68°F to 86°F (20°C to 30°C)per UL 924 Specifications

Sizes

• 1.5kVA, 2.25kVA, 3.0kVA, 3.75kVA, 5.0kVA, 6.0kVA, 8.0kVA, 10.0kVA, 12.5kVA & 16.7kVA

• 1-IE-1-S
• 1-IE-2-S
• 1-IE-3-S
• 1-IE-4-S
• 1-IE-5-S
• 1-IE-6-S
• 1-IE-7-S
• 1-IE-8-S
• 1-IE-9-S
• 1-IE-10-S

• 6-IE-1-S
• 6-IE-2-S
• 6-IE-3-S
• 6-IE-4-S
• 6-IE-5-S
• 6-IE-6-S
• 6-IE-7-S
• 6-IE-8-S
• 6-IE-9-S
• 6-IE-10-S
