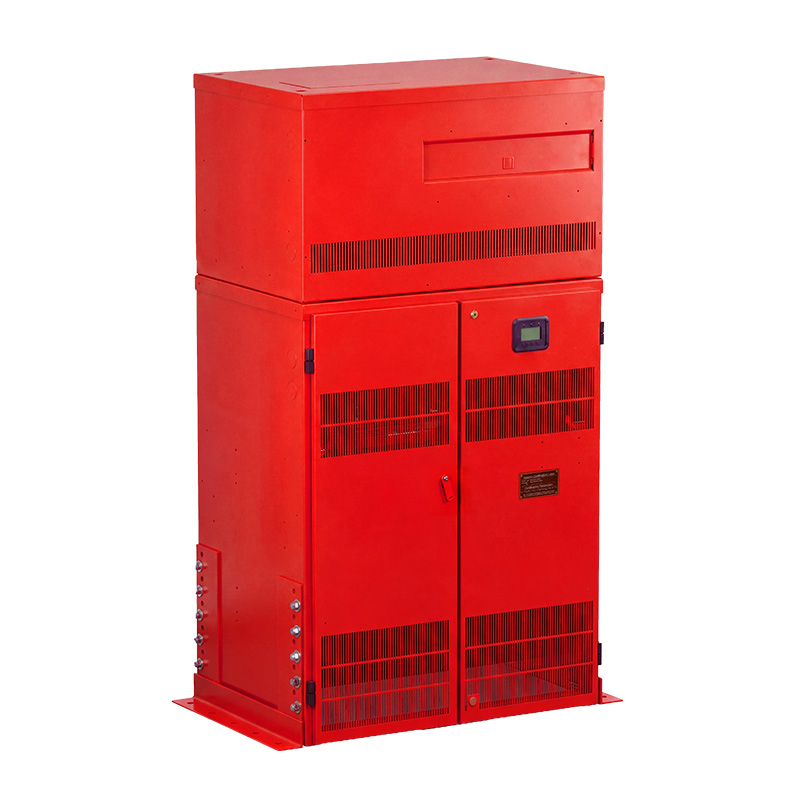

Illuminator Supernova-H (OSPHD) – 1.75kVA to 16.7kVA

ILLUMINATOR SUPERNOVA-H is a simgle-phase emergency lighting inverter system designed for applications requiring extended runtime and seismic compliance. Available from 1,75 kVA/kW to 16.7 kVA/kW, it provides regulated output with less than 3% THD for linear loads and supports 120 or 277 VAC input and output configurations. The system offers a standard 90-minute runtime, is UL 924 listed, and features OSHPD special seismic certification preapproval for use in California healthcare facilities. OSHPD Special Seismic Certification Preapproval Number has been submitted to HCAI, and while the number is still pending, a PE letter is available upon request.

Power Capacity Options

• 1.75kVA, 2.5kVA, 3.75kVA, 5.0kVA, 6.25kVA, 7.5kVA, 10.0kVA, 12.5kVA & 16.7kVA

Capacity and Dimensions

•  1.75kVA/kW – 5.0kVA/kW – 69″ H x 31.5″ W x 25″ D
•  6.25kVA/kW – 7.5kVA/kW – 69.3″ H x 43.1″ W x 25″ D
•  10.0kVA/kW – 16.7kVA/kW- 78.3″ H x 48.5″ W x 25″ D

Standard Features

• 98% Efficient Typical
• Automatic Event, Test, and Alarm Log
• User Programmable With Password Protection
• Input Circuit Breaker
• RS232 Communications Port
• Space-Saving Design
• No Break 2ms Transfer Time
• NFPA 101 Self Testing and Data Logging
• Code Compliant: 90 Min. Runtime
• 65 KAIC Input Rating
• NEMA Type 1 Cabinet

Optional Features

• Enhanced Communications
  • Expanded Building Management Protocols
  • BACnet or Modbus Communications Interface
  • NEW IoT Connect Cloud Software
• Internal or External Maintenance Bypass
• Summary Alarm
• Output Circuit Breakers
• Status Monitoring & Summary Form C Contacts
• Normally Off Output with Time Delay
• Output Trip Alarms
• Seismic
• Factory Startup & Training
• Extended Maintenance & Factory Warranty

Specifications

• Input Voltage: 120 or 277VAC | 1-Phase 2-Wire Plus Ground
• Output Voltage: 120 or 277VAC | 1-Phase 2-Wire Plus Ground
• Output Load Power Factor .5 Lag to .5 Lead
• Output Voltage Distortion Less Than 3% THD for Linear Loads
• Custom Voltage Available (Contact Factory)
• Forced Air Cooling Only During Emergency Operation; No Filters Required
• Compatible with All Lighting and Motor Loads
• Generator Compatibility
• 90 Minute Runtime Standard; Extended Runtimes Available upon Request
• Inverter Operating Temperature 32°F to 104°F (0°C to 40°C)
• Battery Operating Temperature 68°F to 86°F (20°C to 30°C) per UL 924 Specifications
