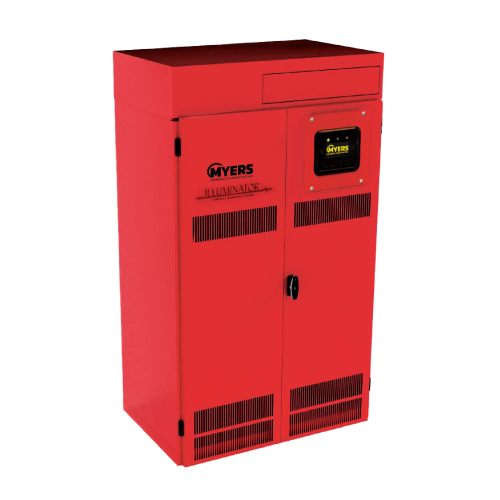

NEW Illuminator Supernova – 1.75kVA, 2.5kVA, 3.75kVA, 5.0kVA, 6.25kVA, 7.5kVA, 10.0kVA, 12.5kVA & 16.7kVA

Myers EPS new Illuminator Supernova single phase units are designed with the industry-leading compact footprint and are available with robust communication options. These highly efficient systems range from 1.75KVA to 16.7KVA.

Capacity and Dimensions

1.75kVA/kW – 5.0kVA/kW – 48″ H x 24″ W x 25″ D
6.25kVA/kW – 7.5kVA/kW – 53″ H x 36″ W x 25″ D
10.0kVA/kW – 16.7kVA/kW- 78.3″ H x 42″ W x 25″ D

Standard Features

98% Efficient Typical
Automatic Event, Test, and Alarm Log
User Programmable With Password Protection
Input Circuit Breaker
RS232 Communications Port
Space-Saving Design
No Break 2ms Transfer Time
NFPA 101 Self Testing and Data Logging
Code Compliant: 90 Min. Runtime
65 KAIC Input Rating • NEMA Type 1 Cabinet

Optional Features

Enhanced Communications
- Expanded Building Management Protocols
- BACnet or Modbus Communications Interface
- NEW IoT Connect Cloud Software
Internal or External Maintenance Bypass
Summary Alarm
Output Circuit Breakers
Status Monitoring & Summary Form C Contacts
Normally Off Output with Time Delay
Output Trip Alarms
Seismic
Factory Startup & Training
Extended Maintenance & Factory Warranty
